In this article, we explained pneumatic systems, the advantages of pneumatic system, the components, the operation of pneumatic, the maintenance, safety in pneumatic systems.
Definition
A pneumatic system is a mechanism that uses compressed air to transmit and control energy, converting it into mechanical motion. Key components include an air compressor to pressurize air, an air tank to store it, filters to remove contaminants, a regulator to control pressure, and actuators to perform work like pushing, pulling, or lifting. These systems are widely used in industrial settings for applications like automated equipment and air tools, as well as in healthcare for transporting materials via pneumatic tube systems.
Advantages of Pneumatic Systems:
Safety:
They are explosion-proof and fire-resistant, making them safe for use in hazardous or inflammable environments.
Leakages do not pose an environmental hazard or create a fire risk.
There is no risk of electric shock.
Reliability and durability:
Components are durable and reliable, requiring less maintenance.
The system is less prone to shock damage because compressed gas absorbs excessive force.
Cost-effectiveness:
Air is abundant and free.
They have lower setup and maintenance costs compared to other systems.
The simple design and use of affordable materials like aluminum and zinc further reduce costs.
Simplicity:
The system is simple to design, install, and control using standard components and on-off controls.
The simple design allows for easy cleaning by disassembling the limited number of tubes.
Speed and efficiency:
They can operate at high speeds.
They are more energy-efficient and can provide high power in a small, lightweight unit.
Compressed air can be stored, allowing machines to operate even if electrical power is lost.
Cleanliness:
They are a cleaner technology as air leaks do not create messes like hydraulic oil does.
The constant flow of air helps push out dirt and debris, keeping the system clean.

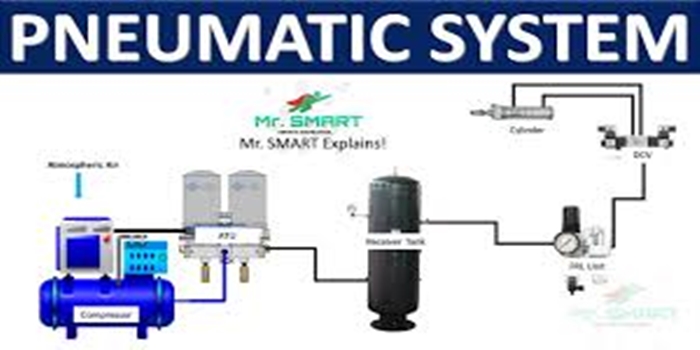

The Components, the Operation of Pneumatic:
Air Compressor: Compresses atmospheric air into a high-pressure state.
Air Reservoir (Receiver Tank): Stores the compressed air to provide a consistent supply and reduce compressor cycling.
Air Treatment Unit: A group of components that prepare the air:
Air Filter: Removes contaminants and moisture from the compressed air.
Regulator: Controls the pressure of the air supplied to the rest of the system.
Lubricator: Adds a small amount of oil to the air for lubricating moving parts.
Control Valves: Direct the flow of compressed air, turning it on, off, or changing its direction to the actuator.
Actuators: Convert the air’s pressure into mechanical work, such as linear motion (cylinders) or rotary motion (motors).
Compression: The air compressor draws in and pressurizes atmospheric air, which is then often cooled.
Storage: The compressed air is sent to a receiver tank for storage.
Treatment: When needed, the air leaves the tank and passes through the air treatment unit (FRL) to be filtered, pressure-regulated, and lubricated.
Control: The cleaned and regulated air travels to a control valve, which is operated to direct the air flow to the actuator.
Actuation: The compressed air enters the actuator, where it pushes a piston or vane to create mechanical movement and perform work.
The Operation of Pneumatic System:
Compression: An air compressor draws in atmospheric air and compresses it into a high-pressure state, storing potential energy in the compressed air.
Treatment: The compressed air is then passed through filters to remove contaminants and moisture, and a pressure regulator adjusts it to the desired level. Lubricant may also be added to the air to lubricate the components.
Transmission: The treated, compressed air travels through pipes and hoses to the point of use.
Control: A directional control valve directs the flow of the compressed air. When activated, the valve opens a path for the air to flow to the actuator.
Actuation: The compressed air enters an actuator, most commonly a cylinder. The air pressure pushes against a piston, which moves a piston rod to perform mechanical work.
Exhaust: After performing its work, the air is released. In a single-acting cylinder, a spring returns the piston, while a double-acting cylinder uses air pressure to control both the extension and retraction of the piston rod.
The Maintenance of Industrial Pneumatic Systems:
Visual inspections: Look for broken parts, debris, or any signs of damage, corrosion, or loose fittings.
Leak detection: Use soapy water or ultrasonic detectors to find and mark any air leaks. Prioritize fixing leaks promptly.
Cleanliness: Wipe down components to remove dirt and debris, which can cause contamination and premature wear.
Filter and dryer maintenance: Clean or replace air filters regularly to prevent contamination from getting into the system.
Moisture removal: Drain air filters and water traps frequently, as moisture can cause rust and damage components.
Lubrication: Lubricate moving parts and tools as recommended by the manufacturer to prevent friction and wear. Use a suitable FRL (filter, regulator, lubricator) to ensure a continuous and proper supply of oil.
Periodic and professional maintenance
Component checks: Regularly check and adjust air pressure regulators to ensure they are within the correct range.
Hose and tubing inspection: Inspect hoses and tubing for cracks, kinks, or wear and replace them as needed.
Safety and performance testing: Ensure that safety valves are functioning properly.
Professional inspections: Schedule regular professional inspections to identify potential issues and address them before they become major problems.
Replacement parts: Replace worn or damaged parts promptly using quality replacement parts to prevent further damage.
Documentation: Always follow manufacturer guidelines and keep a maintenance checklist and logbook for each system.
Depressurize the system: Always depressurize the system before performing any maintenance or repairs.
Wear PPE: Use appropriate personal protective equipment.
Follow guidelines: Adhere to safety standards and be aware of potential hazards, such as high-pressure leaks.
Safety in Pneumatic Systems:
Personal protection
Eye protection: Wear safety glasses with side shields, or a face shield for higher-risk tasks, to protect from flying debris.
Hearing protection: Use ear protection when working near noisy pneumatic equipment.
Gloves: Wear appropriate gloves for better grip and to protect hands from injury.
Footwear: Use protective footwear with safety toes.
Respiratory protection: Wear a dust mask or respirator if dust or particles are present.
Pressure limits: Never operate a tool at a pressure above the manufacturer’s rating.
Regular inspections: Conduct routine inspections to ensure all equipment is in good working condition.
Maintenance: Keep tools clean and lubricated, and maintain them according to the manufacturer’s instructions.
Disconnect tools: Disconnect tools when not in use, before servicing, or when clearing a jam.
System operation
Pressure relief: Always shut off the air supply and relieve all pressure from the system before performing maintenance or repairs.
Lockout/Tagout: Follow proper lockout/tagout procedures to prevent accidental startup during maintenance.
Secure connections: Ensure that tools and hoses are securely fastened to prevent accidental ejection.
Safety clips: Use safety clips or retainers on attachments to prevent them from being ejected.
Compressed air for cleaning: Never use compressed air to blow debris off a person’s body or clothing. For cleaning, ensure nozzle pressure does not exceed 30 PSI and take care not to direct debris at other people or into machinery.
Barriers: Use safety guards, shields, and barriers around moving parts to prevent contact with high-speed components or propelled objects.
Ventilation: Ensure proper ventilation, especially when using air for cleaning, to control airborne particulates.
Air supply: Use clean, dry air. An inline filter, regulator, and lubricator can increase the life of a tool.
Safety valves: Install safety valves to protect against unplanned starts and to relieve pressure when it gets too high.
Training: Ensure all personnel are properly trained on safe operating procedures, hazard recognition, and emergency protocols.
Conclusion
Pneumatic systems are a branch of engineering that uses compressed air or gas to generate and control mechanical motion. They convert the potential energy of compressed air into kinetic energy to perform work, commonly found in industrial automation, robotics, and various tools due to their simplicity, reliability, and safety features.
